EGB-H02
EGB-H02
Mobile:+86 15914616316（Wechat /WhatsApp/Skype)
Product DetailsOnline consultation

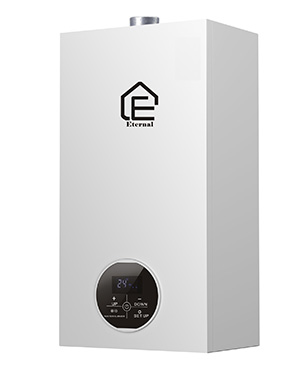

20kw 24kw 28kw Wall-mounted Gas Boiler for Heating System and Daily Hot Water

Model EGB-H02
Gas Type NG(natural gas )
Rated Gas Pressure 2000Pa
Working gas pressure 1500-3000Pa
Gas flow(standard ressure)(m³/h)(max heat load) 2m³/h 2.4m³/h 2.8m³/h 3.2m³/h
Heating system Rated Heat Input(KW) 20 24 28 32
Rated Heat Output(KW) 17.8 21.4 25 28.5
Min. Heat Input(KW) 8.2 9 9.4 9.8
Min. Heat Output(KW) 7.3 8 8.4 9.6
Heating water temperature range 30℃-80℃ 30℃-80℃ 30℃-80℃ 30℃-80℃
Max pressure 0.3MPa(3bar)(80℃) 0.3MPa(3bar)(80℃) 0.3MPa(3bar)(80℃) 0.3MPa(3bar)(80℃)
Expansion tank 6L 6L 6L 6L
Max water flow 145L(80℃ 0.3MPa) 145L(80℃ 0.3MPa) 165L(80℃ 0.3MPa) 185L(80℃ 0.3MPa)
Shower system Rated Heat Input(KW) 20 24 28 32
Hot Water Capacity with △T=30℃ 8.3kg/min 10kg/min 11.6kg/min
Working water pressure 0.015-0.4Mpa(3 bar)
Heating water temperature range 30℃-60℃
Pipe connection Gas Input G3/4''
Heating water input G3/4''
Heating output G3/4''
Cold water input G1/2''
Shower hot water output G1/2''
Heating reference area(㎡) ≤120 ≤140 ≤180 ≤220
Max electric power(W) 110 110 125 125
Voltage/Frequency 220V/50Hz
Green Grade  1 1 1 1
Electricity And Water Protection Grade IPX4D
Exhaust pipe(mm) ф60mm(outlet)/ф100mm(inlet)( 1m length)
Product Dimensions(mm) 720*380*310
Packing Dimensions(mm) 810*455*405
N.W/G.W(kg) 31/34 32/35 33/36 33/36
Container Qty (20GP/40GP/40HQ) 155/310/350
